Maraging 350 / VASCOMAX® 350 Steel - AMS 6515

Maraging 350 / VASCOMAX® 350 is an 18% nickel, cobalt strengthened steel (C-type) with excellent properties, workability and heat treatment characteristics. Maraging is double vacuum melted by VIM (Vacuum Induction Melt) followed by VAR (Vacuum Arc Remelt). Maraging material is supplied in the annealed and descaled condition. The alloy is very tough, relatively soft (RC 30/35), readily machined or formed. Maraging provides a high value for critical parts in aerospace, structural, component and tooling applications.

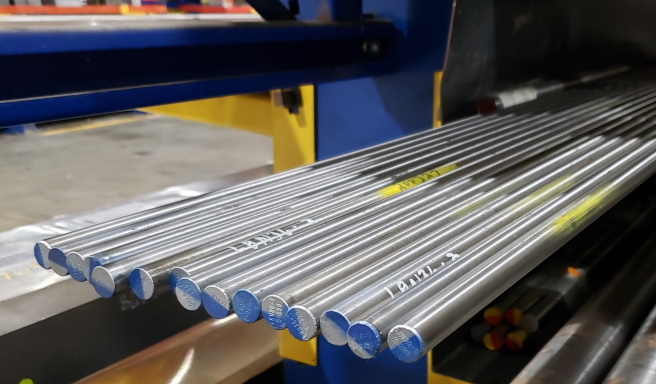

Maraging 350 Steel Bars
pdf icon Download Datasheet pdf icon Download VascoMax Catalog

Service Steel Aerospace is the leading U.S. stocking distributor of Maraging 350 / VASCOMAX® 350 available in billet, bar, rod, plate, sheet, and customized forgings.

Maraging

MARtensitic - a very hard form of steel crystalline structure.

Subsequent AGING (precipitation hardening - approx 3-6 hours @ 900ºF yields optimum material characteristics)

ADVANTAGES OF Maraging 350 Steel:

Excellent Mechanical Properties

  • high yield and ultimate tensile strengths
  • high toughness, ductility and impact strengths
  • high fatigue strength
  • high compressive strength
  • hardness and wear resistance sufficient for many tooling applications
  • Excellent Workability

  • high resistance to crack propagation
  • readily formed – cold, warm, hot (w/o in process anneals)
  • good weldability w/o preheating or post heating
  • excellent polishability
  • Advantages During Application

  • low coefficient of expansion minimizes heat checking
  • pitting and corrosion resistance superior to common tool steel
  • good repair weldability
  • excellent mechanical properties have led to longer tool life
  • easily reworked and retreated for secondary tool life
  • Common Specifications:

  • AMS 6515
  • MIL-S-46850 - Fracture Toughness Applies
  • Chemical Composition:


    SymbolElementNominal %
    CCarbon0.03 max
    SiSilicon0.10 max
    MnManganese0.10 max
    NiNickel18.50
    CoCobalt12.00
    MoMolybdenum4.80
    TiTitanium1.40
    AlAluminum0.10
    FeIronBalance

    Physical Properties:


    Property
    Density, lb /in3.292
    Modulus of Elasticity29.0 x 10-6 psi
    Average Co of Thermal Expansion6.3 x 10-6 in/in/°F

    Heat Treatment / Aging:

    Maraging alloys are essentially carbon-free, a protective atmosphere is not required during annealing or aging. Material is supplied in the solution annealed condition with a hardness of 30/35 Rc. Typical heat treat time/temperature are listed below. Large cross sections should be aged for longer periods.

    TemperatureTimeResulting Hardness
    900/925 °F6 hrs55/60 Rc
    950 °F3 hrs56/60 Rc


    NOTE: A modified aging cycle is suggested for die casting applications for increased die life. The following thermal treatments have been used to obtain desirable characteristics for die casters. Following the rough machining of the die, anneal at 1500-1525 ºF for 1 hour per inch of thickness is typical. After finish machining, an aging heat treatment of 980-1000 ºF for 6 hours is typical.

    Maraging 350 Machinability (Annealed):


    Operation Tool Material Tool Geometry Depth of cut Width of cut Feed Cutting Speed Wearland Cutting Fluid
    TurningM2 or T-15BR: 0°; SR: 10°
    SCEA: 15°; ECEA: 5°
    Relief: 5°; NR: 0.030 in
    0.060 in--0.009 in/rev80 ft/min0.060 inSoluble oil (1:20)
    TurningC3BR: -5°; SR: -5°
    SCEA: 15°; ECEA: 15°
    Relief: 5°; NR: 0.030 in
    --0.009 in/rev4750.010Soluble oil (1:20)
    Face millingM2 or M-7AR: 5°; RR: 5°; CA: 45°
    ECEA: 10°; CI: 8°
    0.0602 in0.005 in/tooth1400.060Highly chlorinated oil
    Face millingC2AR: 10°; RR: 0° CA: 45°
    ECEA: 10° CI: 8°
    0.06020.005 in/tooth3300.015Dry
    Peripheral end millingM2Helix Angle: 30°; RR: 10°
    CA: 45° x 0.060 in; CI: 7°
    0.2500.7500.004 in/tooth2250.012Soluble oil (1:20)
    End mill slottingM2Helix angle: 30°; RR: 10°
    CA: 45 x 0.060 in; CI: 7°
    0.2500.7500.002 in/tooth1400.012Highly chlorinated oil
    DrillingM1118° plain point; CI: 7°0.500 (through hole)--0.005 in/rev1000.015Highly sulfurized oil
    ReamingM2Helix angle: 0°; CA: 45°
    CI: 7°
    0.500 (through hole)--0.009 in/rev600.006Highly sulfurized oil
    TappingM12 flute plug; 75% thread0.500 (through hole)----150Undersize threadsHighly sulfurized oil
    Machining data provided for informational purposes only.

    VASCOMAX® is a registered trademark of Allegheny Technologies Incorporated / Allvac.
