13-8 PH STAINLESS STEEL – AMS 5629 – UNS S13800

13-8 PH is a martensitic precipitation-hardening stainless steel. This alloy is double melted in a Vacuum Induction Furnace (VIM) followed by Consumable Electrode Vacuum Melt (CEVM or VAR); or in some cases, 2nd melt is by Electroslag Remelting (ESR) as specified by consumer. It exhibits excellent strength, high hardness, superior toughness, and good corrosion resistance. Good transverse toughness properties are achieved by tight chemical composition control, low carbon content, and vacuum melting. 13-8 PH steel provides a wide range of properties through a single precipitation hardening heat treatment. It is weldable; inert gas shielding with Helium is preferred. Corrosion resistance is similar to 304 Stainless, with greatest resistance in the fully hardened conditions.

Download Datasheet

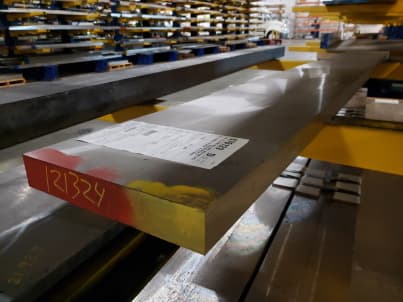

Service Steel Aerospace is the largest U.S. stocking distributor of 13-8 PH stainless steel. It is available predominantly in Bars, Wire, Forgings, Rings and Extrusions per AMS 5629. It is also available in Sheet and Plate.

13-8 PH stainless steel is typically used in the following applications:

Used primarily for parts requiring corrosion resistance, stress-corrosion, and high strength 600°F (316°C), with good ductility and strength in transverse direction for

Aerospace components
Injection molding equipment
Waterjet cutting equipment
Petrochemical industries
Nuclear industries

Common OEM Approvals:

Pratt Whitney LCS
Honeywell
GE S-400, S-1000
Bombardier approval to AMS 5629 including aging to H1000
Gulfstream

Common Trade Names:

PH13-8Mo
XM-13
UNS S13800
DMS 2100 Grade
HMS 6-1105 REV A AMD 3
ST0160LB0013 REV E
ASTM F899-12B
RMS-150 REV N for sizes 3.625” Max
SAE 13-8
ATI 13-8 Supertough^® Alloy

Common Specifications:

AMS 5629 Bars, Forgings, Wire, Extrusions
- - Rounds 12" max diameter
- - Hexagons 12" max across flat sides
- - 12" max least distance parallel sides
- - Stock of any size for forgings, flash welded rings, or extrusion
AMS 5629/H1000 (produced & precipitation hardened to H1000 condition)
AMS 5864 (Plate)
ASTM A564 (Type XM-13 Bars, Wires, Shapes)
ASTM A693 (Sheet, Plate, Strip)
ASTM A705 (Forgings)
AMS 5934 ATI 13-8 Supertough^® Alloy Bars, Forgings, Rings, Extrusions

Heat Treatment:

Condition	Temperature
H950	950°F ± 10°F (510°C ± 6°C)
H1000	1000°F ± 10°F (538°C ± 6°C)
H1025	1025°F ± 10°F (552°C ± 6°C)
H1050	1050°F ± 10°F (566°C ± 6°C)
H1100	1100°F ± 10°F (593°C ± 6°C)
H1150	1150°F ± 10°F (621°C ± 6°C)

Physical Properties:

Density: 0.2836 #/in³
Melting Range 2560° - 2680°F

AS9100 Mill Producers:

ATI Specialty Materials
Carpenter Technology Corp.
Dunkirk Specialty Steel, a Universal Stainless company
Carpenter Technology Corp. Latrobe Specialty Metals
Universal Stainless & Alloy Products
Western Australian Specialty Alloys

Stocked Sizes:

Rounds: 44 sizes 0.500” through 9.0” diameter
Flats & Blocks: 52 sizes 0.25” through 8”
- - Custom thicknesses & widths available saw-cut or forged
Ingots & Billets: 3 sizes 14” through 29” for conversions
- Note: Stocked primarily in annealed condition (solution treatment)
- SSA routinely provides heat treated materials to all Hxxx conditions

13-8 PH Stainless: AS9100 Mill Producers

ATI Specialty Materials
Carpenter Technology Corp.
Dunkirk Specialty Steel, a Universal Stainless company
Carpenter Technology Corp. Latrobe Specialty Metals
Universal Stainless & Alloy Products
Western Australian Specialty Alloys

Chemical Composition:

Symbol	Element	Min %	Max %
C	Carbon		0.05%
Mn	Manganese		0.10%
Si	Silicon		0.10%
P	Phosphorus		0.010%
S	Sulfur		0.008%
Cr	Chromium	12.25%	13.25%
Ni	Nickel	7.50%	8.50%
Mo	Molybdenum	2.00%	2.50%
N	Nitrogen		0.010%
Al	Aluminum	0.90%	1.35%
Fe	Iron		Balance

Mechanical Properties:

Condition	Tensile	Yield 0.2% offset	Elongation (%in 2")	Reduction of Area	Brinell Hardness	Rockwell Hardness
Ann	175 ksi max				363 max
H950	220 ksi	205 ksi	10%	45%		C45 min
H1000	205 ksi	190 ksi	10%	50%		C45 min
H1025	185 ksi	175 ksi	11%	50%
H1050	175 ksi	165 ksi	12%	50%		C40 min
H1100	150 ksi	135 ksi	14%	50%		C34 min
H1150	135 ksi	90 ksi	14%	50%		C30 min
